In industries where electrostatic discharge (ESD) can cause catastrophic damage—such as electronics manufacturing, semiconductors, cleanrooms, and aerospace—anti-static tape is more than a convenience. It’s a crucial part of your ESD control strategy.
But with a wide variety of anti-static tapes available on the market—each varying in materials, adhesive types, performance specs, and cost—it can be difficult to know which product is right for your application.
In this guide, we’ll walk through key factors to consider when choosing anti-static tape, helping you make informed decisions that balance safety, performance, and cost-effectiveness.
-
Understand the ESD Requirement: Conductive vs. Dissipative
The first step is to determine the level of ESD protection your application requires.
Conductive tapes have a surface resistivity of <10⁶ ohms. They allow electrical charges to flow quickly through them and are used when rapid discharge or grounding is needed—often in EMI shielding or grounding applications.
Static-dissipative tapes have a surface resistivity between 10⁶ and 10⁹ ohms, allowing charges to decay slowly and safely. These are the most common choice in electronics assembly or cleanroom operations.
Tip: If you’re working with highly sensitive electronics (e.g., ICs, PCBs, sensors), dissipative tapes are generally safer than conductive ones, which may discharge too quickly.
-
Choose the Right Substrate Material
The base material, or film, of the tape determines its mechanical strength, flexibility, temperature resistance, and clarity.
| Substrate | Key Properties | Ideal Use |
| PET (Polyester) | High clarity, chemical resistance | Display protection, labeling |
| PI (Polyimide) | High-temp resistance (up to 260°C) | Wave soldering, reflow masking |
| PVC | Cost-effective, flexible | General packaging, static-sensitive cartons |
| Conductive Fabric or Foil | High conductivity, durable | EMI shielding, grounding |

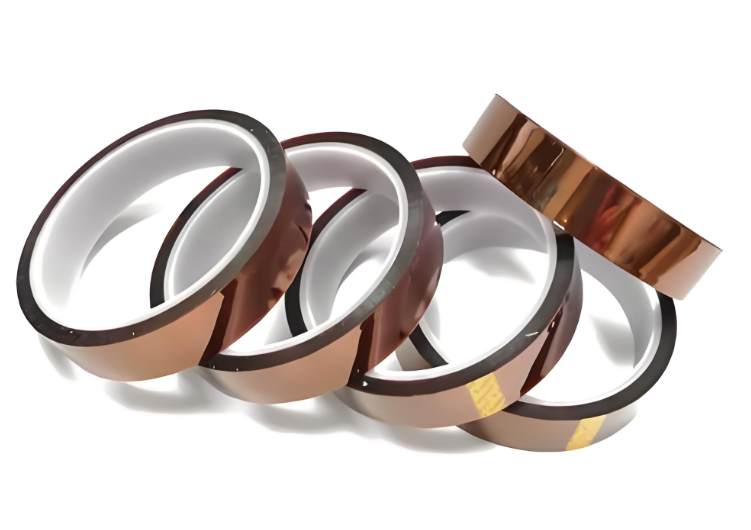

Note: PI tapes are often amber-colored and used in high-temperature ESD masking processes, while PET tapes are transparent and suited for visual inspection areas.
-
Select the Appropriate Adhesive Type
The adhesive layer must be ESD-safe and compatible with your materials and environment.
Acrylic adhesives: Good long-term aging, stable under UV and humidity. Suitable for electronics and cleanroom use.
Silicone adhesives: Excellent for high temperatures and delicate surfaces, but may leave residue.
Rubber-based adhesives: Strong initial tack, more economical, but less stable over time.
Check if the adhesive is conductive, dissipative, or non-conductive, and whether it’s single-sided or double-sided, depending on how the tape will be applied.
Residue can compromise sensitive components. Choose low-residue adhesives for cleanroom or precision electronics work.
-
Consider Temperature Resistance
Some processes, such as soldering or hot air leveling, require tapes that can withstand high temperatures for short periods.
| Temperature Range | Tape Type |
| Up to 80°C | General-purpose ESD tape |
| Up to 150°C | PET-based anti-static tape |
| 200–260°C | PI-based high-temp anti-static tape |
If your process involves heat curing, wave soldering, or thermal masking, polyimide-based anti-static tapes are your safest choice.
-
Surface Characteristics and Appearance
In applications where optical clarity or minimal surface contamination is needed, appearance matters.
Transparent PET tapes: Ideal for displays or areas requiring visual inspection.
Matte-finish tapes: Reduce glare under bright lights.
Color-coded tapes: Used for process identification or zone marking.
Also evaluate if the tape has anti-reflective, anti-fog, or UV-resistant properties if used in specific lighting or environmental conditions.
-
Packaging & Storage Conditions
Anti-static tape’s performance can degrade over time if improperly stored. When choosing a tape:
Check shelf life (typically 6–12 months).
Ensure packaging is anti-static or ESD-shielded.
Store in controlled temperature and humidity conditions, away from direct sunlight.
Some vendors also offer custom slit widths, die cuts, or cleanroom-packaged rolls—ideal for high-spec facilities.
-
Compliance & Industry Standards
For regulated industries or quality-sensitive production lines, make sure the tape complies with:
ANSI/ESD S20.20 or IEC 61340 standards.
RoHS or REACH compliance for chemical safety.
ISO Class 5–8 compatibility for cleanroom use.
Always ask your supplier for technical datasheets (TDS), MSDS, and ESD test reports.
-
Cost vs. Performance Trade-Off
While premium anti-static tapes offer better reliability and lifespan, you should assess your application’s risk profile and use frequency.
| Use Case | Suggested Tape Grade |
| Temporary masking or packaging | Standard ESD-safe tape |
| High-temp soldering or permanent bonding | Industrial-grade PI tape |
| Cleanroom display protection | Optical-grade PET tape |
In critical environments, under-specifying tape can cost more in rework, component loss, or product failure than spending a few cents more per meter.
Conclusion
Choosing the right anti-static tape is not just about selecting any tape labeled “ESD-safe.” It requires an understanding of your process, environment, materials, and performance needs. From selecting the proper substrate and adhesive, to evaluating resistivity and heat resistance, each decision contributes to safer, more efficient operations.
By following the guidelines in this article, you’ll be better equipped to select the right tape for your application—and avoid the pitfalls of underperforming materials.
